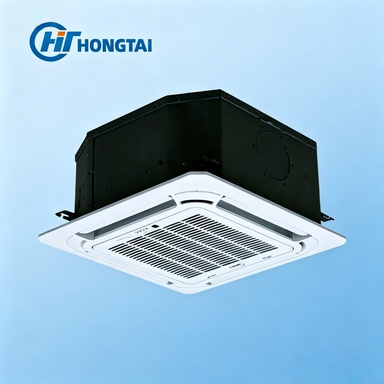

Compact Cassette AC Space Saving Design for Hotel Rooms Standard Fit
Product Overview
The Compact Four-Way Cassette is engineered to fit perfectly within standard 620mm × 620mm ceiling tile dimensions, eliminating cutting requirements and streamlining installation. This space-saving design makes it ideal for renovation projects and new construction where ceiling space is limited.
Advanced Airflow Technology
Featuring an innovative round air discharge design, this cassette unit provides 360° uniform airflow distribution. The continuous air supply port increases air supply area by 20%, ensuring superior temperature distribution throughout the entire space.
Intelligent Control Features
With 7 fan speed options and individual louver control via wired remote, users can customize comfort settings with exceptional flexibility. The optional human detect sensor utilizes millimeter-wave radar technology to automatically adjust temperature based on room occupancy, optimizing both comfort and energy efficiency.
Key Features & Benefits
- Standard Tile Fit: Fits within 620mm × 620mm standard tile space without cutting requirements
- 360° Airflow Distribution: Round air discharge design with 20% larger air supply area for uniform coverage
- Human Detect Sensor: Millimeter-wave radar detects human presence and automatically adjusts temperature
- 7 Fan Speeds: Extensive fan speed options for customized comfort based on user preference
- Individual Louver Control: Each louver can be independently controlled via wired remote
- Auto Electronic Expansion Valve: Automatically adjusts valve opening during heating standby to eliminate refrigerant noise
- Extended Air Supply: Additional 30Pa static pressure suitable for ceiling heights up to 3.5m
Recommended Applications
Office Spaces
Hotel Corridors
Retail Stores
Meeting Rooms
Medical Clinics
Certifications & Standards
Eurovent Certified Performance
CE Compliance (EU Safety Standards)
RoHS Compliant
ISO 9001:2015 Quality Management
Silver Ion Technology Certified
Technical Specifications
| Capacity Range |
1.5 - 6.3 kW (0.5 - 2.1 US Tons) |
| Power Supply |
220-240V, 50Hz, 1-phase |
| Sound Pressure Level |
25 - 43 dB(A) |
| Airflow Rate |
295 - 905 m³/h |
| Net Dimensions (W × H × D) |
575 × 235 × 638 mm |
| Refrigerant Type |
R410A / R32 |
| External Static Pressure |
30 Pa |
